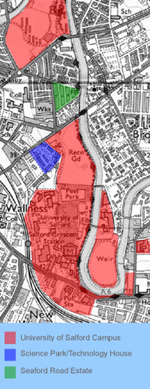

Location Plan

Location Plan
Site Plan

plan of the Seaford Road estate






left top corner arrow arrow arrow right top corner
Part 3 : Resolution : Proposal

Less that five minutes walk from the main Salford University Campus, on a major route from the playing fields and student residences, lie 5 streets of densely packed Victorian terraces. No longer acceptable to modern families they are deserted and boarded up, and have become a serious crime problem for locals and the council. Consequently, demolition is imminent..
left bottom corner   right bottom corner

Branded Elevation
However, there could be an alternative future for these houses. That the structures have outlived their functionality as housing is clear, but it is possible that a reconfiguration could take place to enable the buildings to be brought back into use?

In this prime location very close to the University of Salford and nearby the existing Science Park with the River Irwell passing the end of the site, this area is very well suited to an expansion of the Universities Business Incubation space.

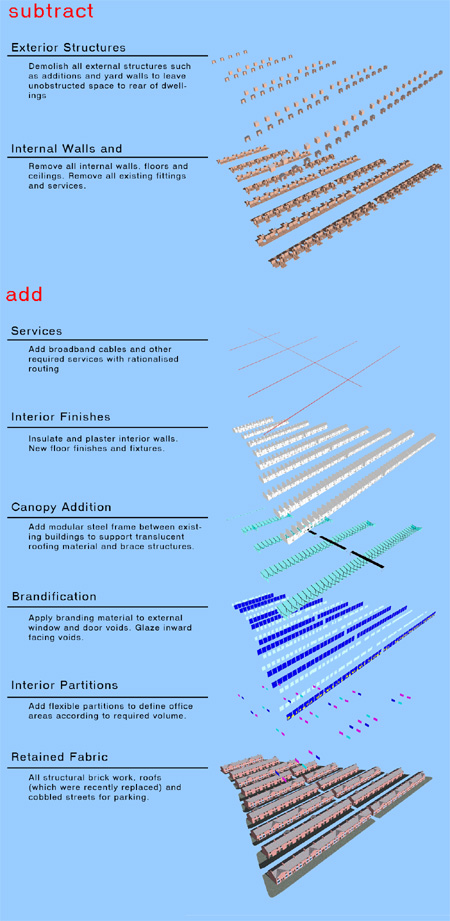

This project is an attempt to outline the minimum required intervention to convert this defunct housing estate into Incubator Space. The conversion process would take place in the following manner:

exploded perspective showing rehabilitation process

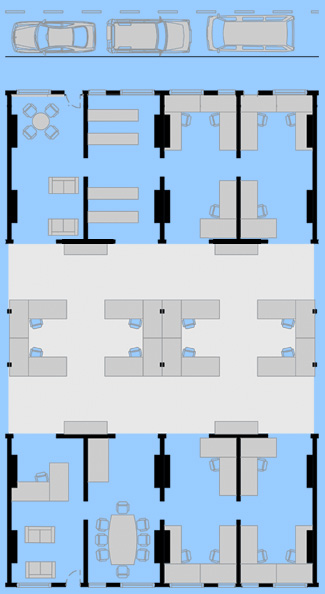

Once the basic rehabilitation work has taken place, the resulting cellular spaces can linked or divided to suit required configurations. The resulting spaces will easily be able to accommodate a wide range of office uses. Below is an example of how the space might be configured:

exploded perspective showing rehabilitation process

image of the Seaford Road estate
image of the Seaford Road estate
image of the Seaford Road estate
plan of the Seaford Road estate
Visualisation of Incubator
Visualisation of Incubator
Visualisation of Incubator
